Torchuck S360 Skid Steer Loader
Torchuck S360 skid steer loader is a compact workhorse built for narrow sites and frequent job changes. With an operating weight of 900 kg and bucket capacity 0.12 m³, it moves easily between jobs while delivering reliable lifting, carrying, and dumping. A high-flow dual pump powers smooth hydraulics for quick three-function cycles (≈ 9 s), and reinforced tires handle debris-filled yards without fear of punctures.
Power choices include Briggs & Stratton gasoline, KOOP/Rato engines, or a 72V lithium iron phosphate (LiFePO₄) electric setup for low-noise, low-maintenance operation.
Application:
- Urban street & facility maintenance, landscaping, estate work
- Small construction sites, debris cleanup, backfilling & levelling
- Farm & barn operations, feed handling, light material transport
- Warehouse/dock yards where compact size and agility are critical
Why Choose Torchuck S360 Skid Steer Loader?
Reinforced Tires
- Heavy-duty tires resist cuts and punctures on rubble, nails, and gravel, reducing downtime.
Ultra-Compact & Maneuverable
- Overall dimensions about 2070×1050×1300 mm with a tight turning radius for alleys, warehouses, and indoor work.
High-Flow Dual Pump
- Responsive hydraulics accelerate lift/tilt/scoop actions and keep productivity high on small jobs.
Multiple Power Options
- Gasoline B&S, KOOP/Rato, or lithium-electric 72V to match local regulations and service preferences.
Easy, Intuitive Controls
- Simple dual-lever joystick layout with clear instrumentation; quick to learn for new operators.
Low Operating Cost
- Lightweight machine, efficient pumps, and straightforward daily checks keep fuel/energy and maintenance costs under control.
| Model | S360 |
| Operating Weight | 900 kg |
| Bucket Capacity | 0.12 m³ |
| Climbing Ability | 25° |
| Maximum Breakout Force | 3.5 KN |
| Rated Load | 200 kg |
| Maximum Load | 300 kg |
| Travel Speed | 0–6 km/h |
| Three-item Sum of Work | 9 s |
| Working System Pressure | 17–21 bar |
| Bucket Width | 1050 mm |
| Max Loading Height | 1720 mm |
| Max Dumping Height | 1510 mm |
| Max Operating Height | 2400 mm |
| Height to Bucket Pin | 1870 mm |
| Max Height Bucket Dump Angle | 63° |
| Min Height | 1300 mm |
| Tail Length | 500 mm |
| Ground Clearance | 130 mm |
| Dumping Distance | 250 mm |
| Wheelbase | 750 mm |
| Overall Dimensions | 2070×1050×1300 mm |
| Length Including Bucket | 2070 mm |
| Length Excluding Bucket | 1640 mm |
| Tire Model | 18×8.5–8 |
| Brand | Lithium Electric / KOOP / Rato / B&S |
| Model | Lithium Iron Phosphate / 192F / R420 / XR13.5 |
| Rated Power | 6kW, 72V, 125Ah / 7.5 / 8.6 / 9.9 kW |
| Cylinder | 1 |
| Intake Method | Natural Inhalation |
| Emission Standard | EPA / Euro V |
| Fuel Tank Capacity | 5 L |

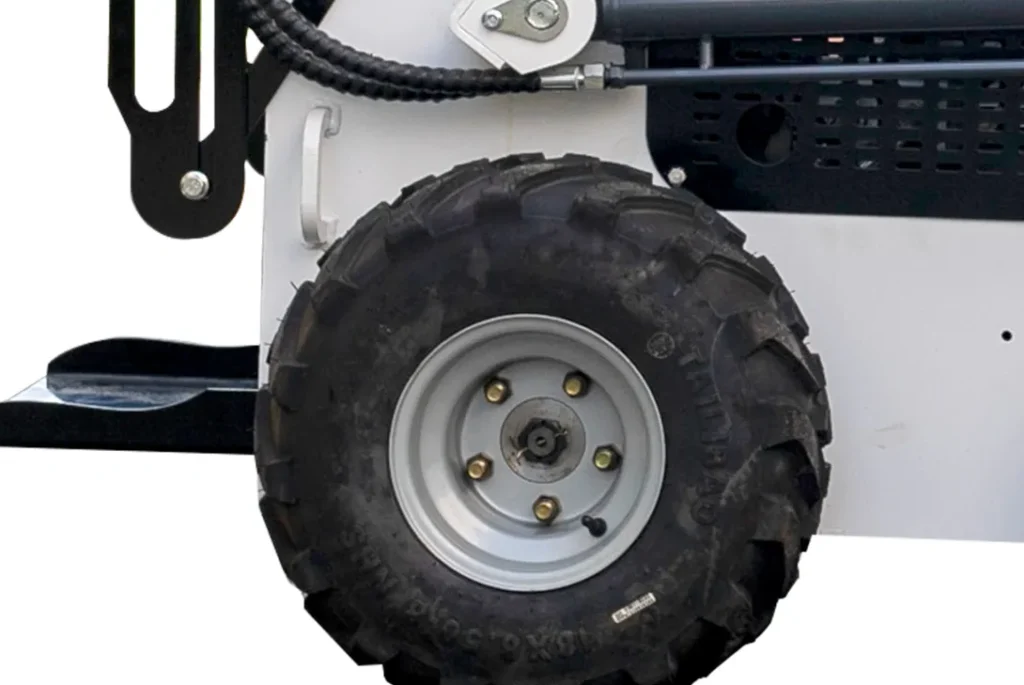

Heavy-Duty Reinforced Tires
Purpose-built tires provide traction and durability on asphalt, gravel and compacted soil, minimizing punctures and downtime.
B&S Engine (Optional Power Suite)
Trusted Briggs & Stratton gasoline power with easy service access. Alternative KOOP/Rato engines or a 72V LiFePO₄ electric system are available for different markets and noise/emission requirements.

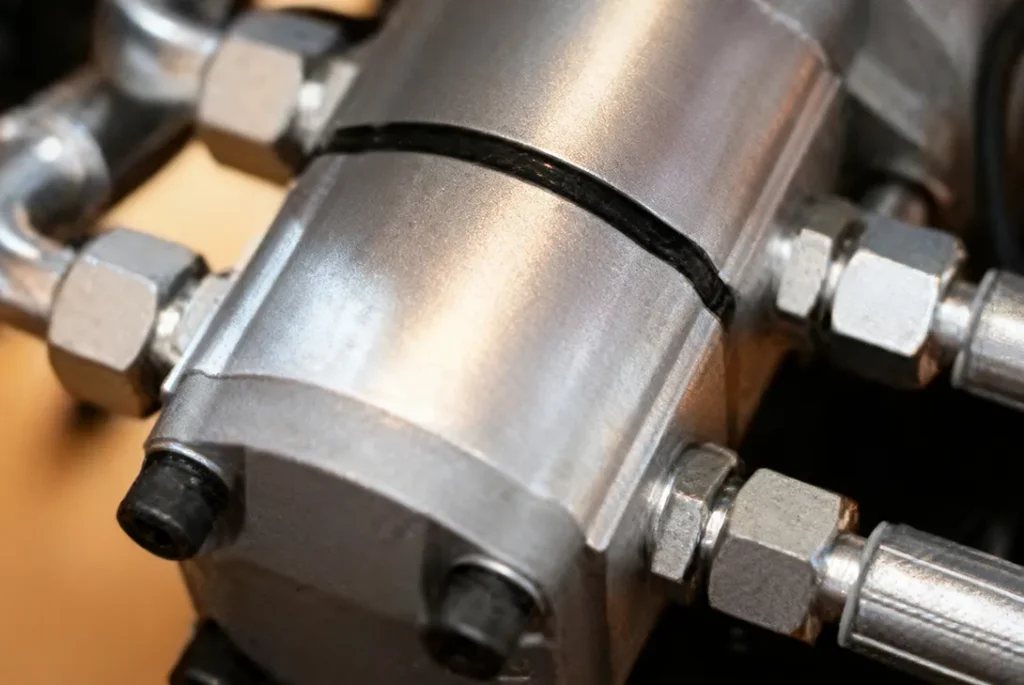

High-Flow Dual Pump Hydraulics
Balanced flow to lift and tilt circuits delivers smooth, precise control. Working pressure approx. 17–21 bar with a high dump angle up to 63° for efficient truck loading.

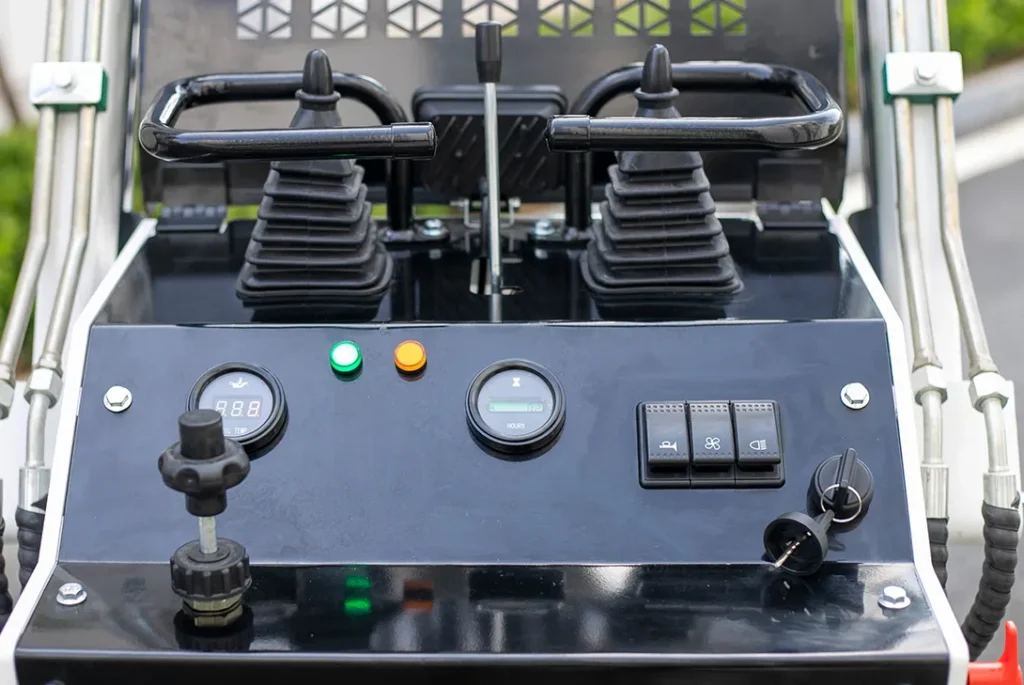

Operator-Focused Controls & Safety
Ergonomic joysticks, clear gauges and protective cage improve confidence and safety. Travel speed up to 0–6 km/h; bucket width about 1050 mm for narrow passages.
Why Choose Torchuck?
Reliable Supply
ready stock and on-time delivery for contractors & distributors
Factory pricing
Direct sales with agent/bulk discounts
Global Support
Parts and tech service for overseas buyers
Testimonials
“Our S360 skid steer loader fits where larger loaders can’t. Fast hydraulic response and tough tires—perfect for city maintenance.”
— Marco D., Municipal Services, Italy
“We chose the lithium version for quiet barn work. Simple controls, low upkeep, and easy to move around the farm.”
— Natalie P., Farm Owner, New Zealand
Get Your S360 Skid Steer Loader
Torchuck supplies factory-direct S360 skid steer loaders with gasoline, diesel or lithium-electric power, plus attachments (forks, auger, breaker, sweeper, grapple, etc.) and OEM color/logo options. Contact us for pricing, shipping and distributor programs.
