HT45 Excavator – Flexible 4.5-Ton Wheeled Machine for City Jobs
HT45 Excavator moves fast on roads, saves fuel, and gives strong digging power for urban and quarry work.
HT45 Excavator – Flexible 4.5-Ton Wheeled Machine for City Jobs
HT45 Excavator moves fast on roads, saves fuel, and gives strong digging power for urban and quarry work.

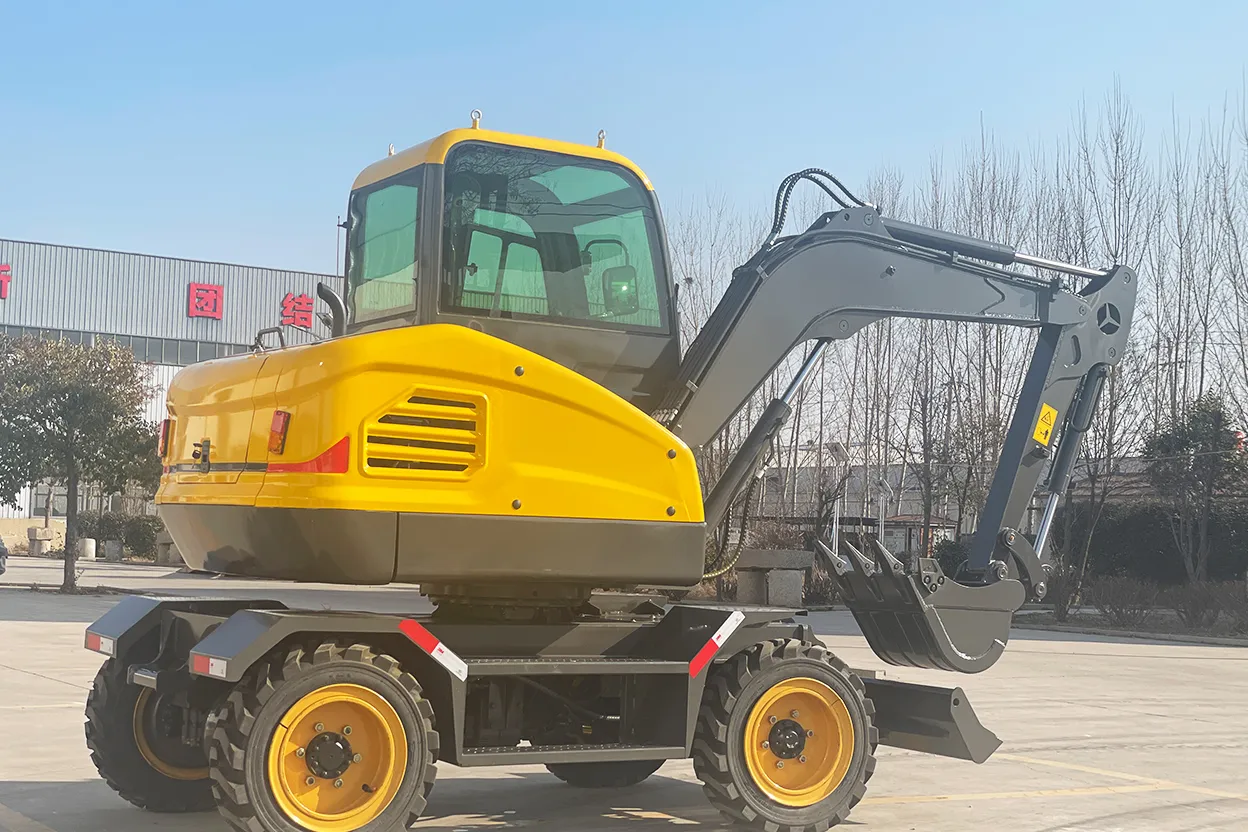

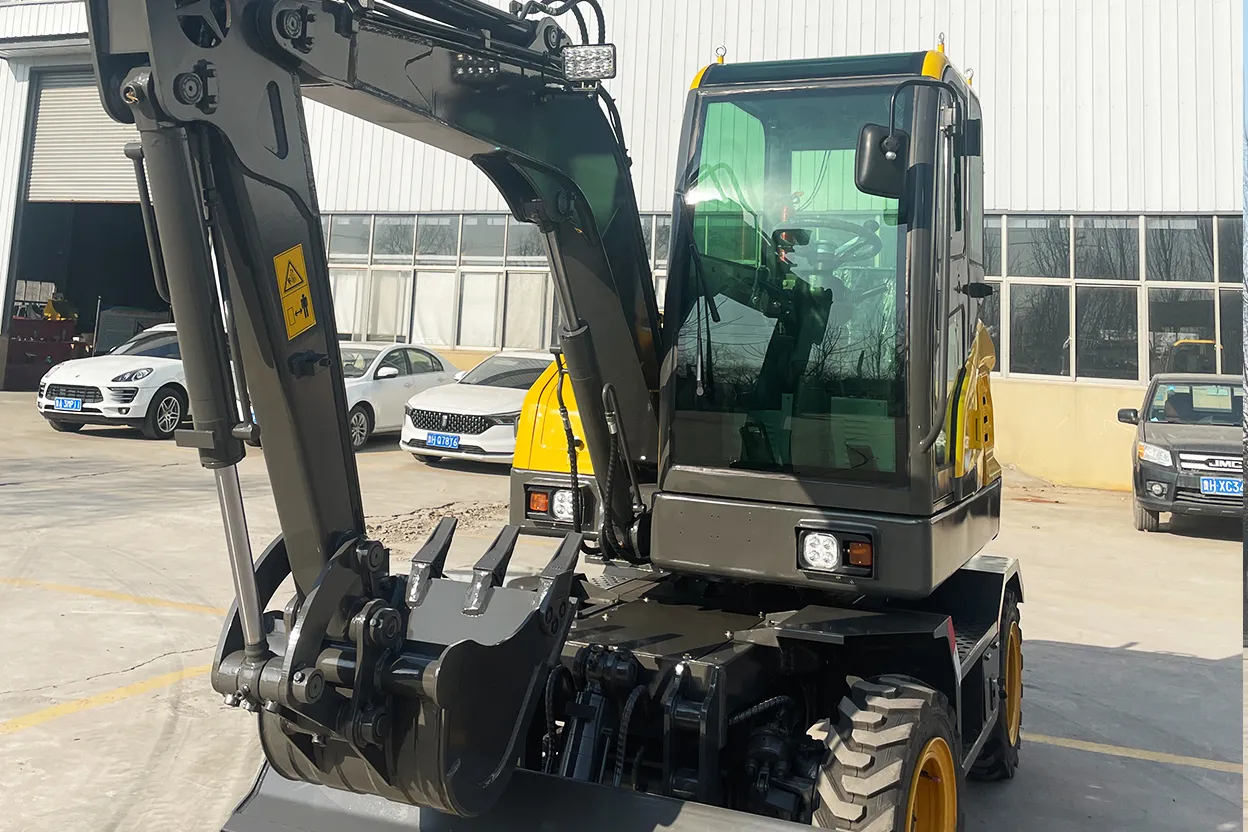

HT45 Excavator Overview
HT45 Excavator is a compact 4.5-ton wheeled excavator for projects that need both mobility and digging power. The machine uses a 0.26 m³ bucket and a 34 kW engine, so it can load trucks, shape slopes, and clean ditches with steady output. The wheeled chassis lets the machine drive between sites on its own, which reduces the need for a trailer for short moves.
The hydraulic system of HT45 Excavator works with 22 MPa working pressure and a reliable gear pump. The boom and arm use strong steel sections, so they keep high digging force during hard ground breaking. The dozer blade at the front supports the machine when it pushes soil or levels a yard, and it also helps to keep the undercarriage stable when the operator works on one side.
The cab of HT45 Excavator is fully closed and gives good visibility on all sides. Large front and side windows help the operator see people, trucks, and obstacles in a busy street or quarry. The seat, control levers, and pedals are placed in a simple and clear layout, so new drivers can learn quickly, and long-time drivers can work with less fatigue.
Typical Applications of HT45 Excavator
Municipal road repair and trench work in cities and towns
Earthmoving and loading work in small quarries and sand pits
Ditch and culvert digging for water, cable, and drainage lines
Foundation work around houses, shops, and light industrial buildings
Slope shaping and embankment work for road and rail lines
Loading loose soil, gravel, and broken rock into trucks on job sites
Why Choose HT45 Excavator?
Fast travel and flexible steering
HT45 Excavator uses a wheeled undercarriage, so it can move quickly between job points without a trailer.
Tight steering angle helps the machine work in narrow city streets and small yards.
Strong digging power for its size
34 kW engine and well-matched hydraulics give stable force for trenching and loading.
The boom and arm design keeps good digging strength even when the bucket works at full reach.
Fuel-efficient and cost-saving
The engine runs at an efficient speed range, so fuel use stays low in daily work.
Fast travel speed and quick cycles help contractors finish more work with less fuel per cubic meter.
Comfortable and simple to operate
Enclosed cab protects the operator from dust, wind, and light rain.
Clear dashboard, easy-to-reach joysticks, and pedals make it easy to learn and to control.
Easy service and long component life
Main service points, such as filters and oil check ports, are grouped for quick access.
The boom, arm, and bucket pins use strong materials and good sealing, so they keep tight for a long time.
HT45 Excavator Specifications
You can find the key specifications of HT45 Excavator in the table below, including dimensions, working ranges, engine data, and hydraulic system. Use these figures to check if the machine matches your projects and transport limits.
| Operating Weight | 4500 kg |
| Transport Length | 4400 mm |
| Transport Height | 2200 mm |
| Chassis Width | 1530 / 1600 mm |
| Track Shoe Width | 300 mm |
| Total Track Length | 2175 mm |
| Track Gauge | 1703 mm |
| Min. Ground Clearance | 557 mm |
| Max. Digging Height | 4450 mm |
| Max. Dumping Height | 3050 mm |
| Max. Digging Depth | 2545 mm |
| Max. Digging Reach | 4630 mm |
| Max. Digging Radius | 4730 mm |
| Min. Swing Radius | 1820 mm |
| Dozer Blade Max. Lifting Height | 359 mm |
| Dozer Blade Max. Digging Depth | 268 mm |
| Min. Tail Swing Radius | 1170 mm |
| Engine Model | ZN490 |
| Rated Power | 34 kW |
| Cooling Type | Water-cooled diesel engine |
| Working Pressure | 22 MPa |
| Travel Motor | Dual-speed piston motor |
| Swing Motor | Variable piston motor |
| Main Pump | 32 cm³ piston pump |
| Flow Rate | 99 L/min |
| Gradeability | 35° |
| Max. Digging Force | 55.6 kN |
| Travel Speed | 2.4 / 4.6 km/h |
| Ground Pressure | 34.8 kPa (0.355 kgf/cm²) |
| Bucket Capacity | 0.26 m³ |
| Fuel Tank Capacity | 60 L |
| Hydraulic Oil Tank Capacity | 75 L |
HT45 Excavator Detail Highlights
Axle and Tire Detail
Heavy-duty axles and wide tires give stable support when the HT45 Excavator travels on gravel and rough ground.
The tire pattern provides good grip on slopes and ramps, while it still runs smoothly on paved roads.
Strong fenders and wheel covers help protect the axle area from stones and debris.
Boom and Hydraulic Cylinder Detail
The boom uses thick steel plates and strong welds, so it can handle tough breaking and loading tasks.
Main cylinders give smooth and precise movement, which helps the operator place the bucket exactly where needed.
Hose routing stays close to the boom body, so hoses are less exposed to damage from branches and rocks.
LED work light detail
Bright LED work lights give a clear view of the bucket and the front area during night work or in tunnels.
Low power use of LEDs reduces load on the electrical system and extends light service life.
The light housings are mounted with solid brackets, so they stay stable even on rough terrain.
Quick Coupler and Bucket Detail
HT45 Excavator can use a quick coupler, so the operator can change buckets or tools in a short time.
The standard bucket has strong side plates and wear strips, which help it last longer in rock work.
With the right coupler, the machine can also work with breakers, thumbs, or other attachments for more jobs.
Why Work With Torchuck for HT45 Excavator?
Factory-direct support – Torchuck works closely with the HT45 Excavator factory and knows the machine very well. The team can give fast answers on specs, options, and shipping plans.
Dealer-friendly policies – Torchuck supports long-term dealers with better price levels, flexible payment options where possible, and help with local promotion materials.
Rich export experience – Torchuck ships excavators to many countries and understands import rules, packing methods, and container loading plans. This helps reduce risk and extra cost.
After-sales service – The service team can supply wear parts, filters, and key components quickly. Basic training and online support help your mechanics solve most issues on site.
Product range synergy – HT45 Excavator can be sold together with Torchuck mini excavators, skid steer loaders, and forklifts, so dealers can offer a full line of machines to their customers.
Real Jobsite Scenes of HT45 Excavator
Quarry Working Scene
HT45 Excavator works on quarry ground with loose rock and uneven surfaces.
The wheeled undercarriage lets the machine change working spots quickly without moving steel tracks over sharp stone.
The operator can load trucks, shape piles, and clean working areas with fewer moves.
Quarry Working Scene
HT45 Excavator handles trenching and loading tasks at the edge of the quarry.
The dozer blade supports the front of the machine during digging, which helps keep the chassis steady on slopes.
Good visibility from the cab helps the operator watch trucks and workers and reduce accidents.
See the HT45 Excavator in Action. Get a Quote Today.
Torchuck welcomes dealers, rental companies, and contractors who need a flexible 4.5-ton wheeled excavator. You can use HT45 Excavator for city road work, small quarries, and many other jobs where fast travel and strong digging power are important.
Send us your company name, destination port, and basic project needs. Our team will reply with machine prices, optional attachments, and shipping plans as soon as possible, so you can plan your next order with clear numbers.
