HT60 Excavator – Strong 6-Ton Crawler for City and Quarry Jobs
The HT60 Excavator gives a 6-ton body, a 0.3 m³ bucket and a safe, closed cabin.
The machine fits heavy city work, small quarry work and rental fleets that need stable, daily output.
HT60 Excavator – Strong 6-Ton Crawler for City and Quarry Jobs

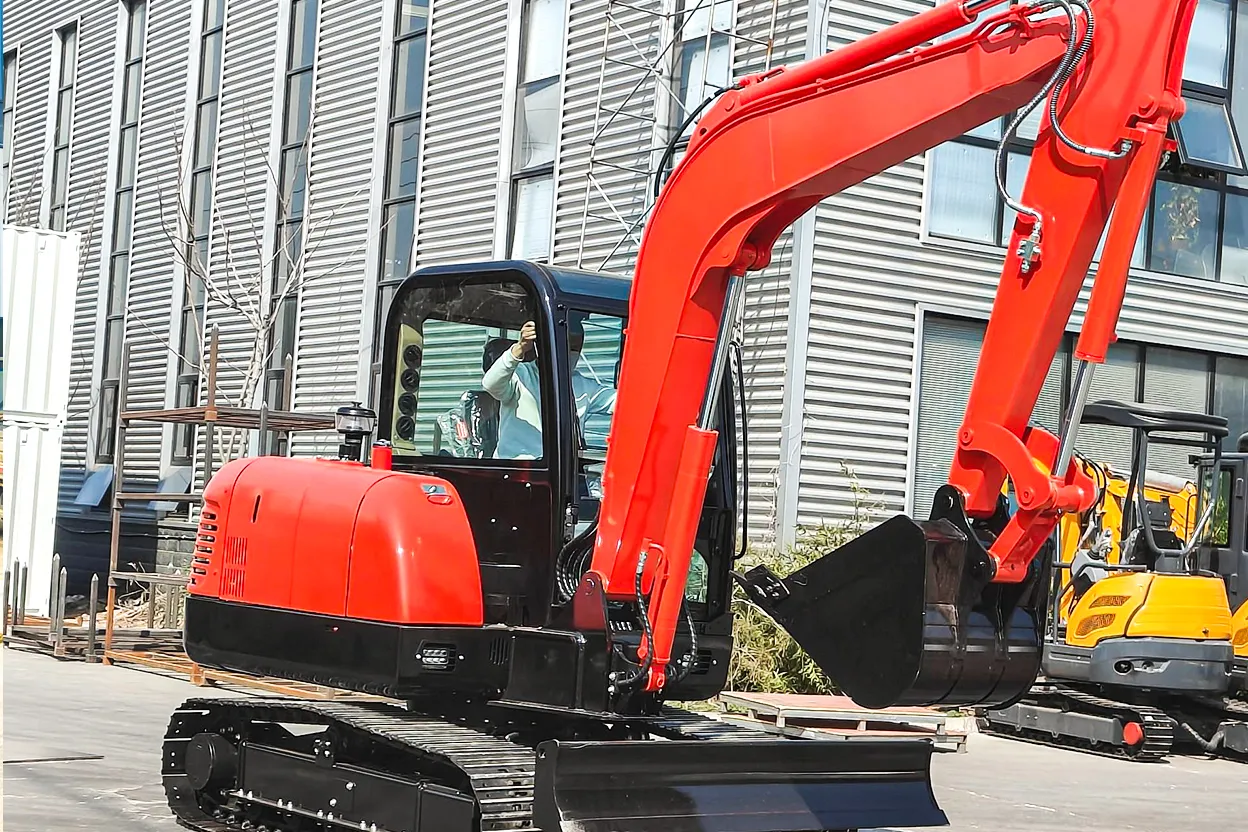

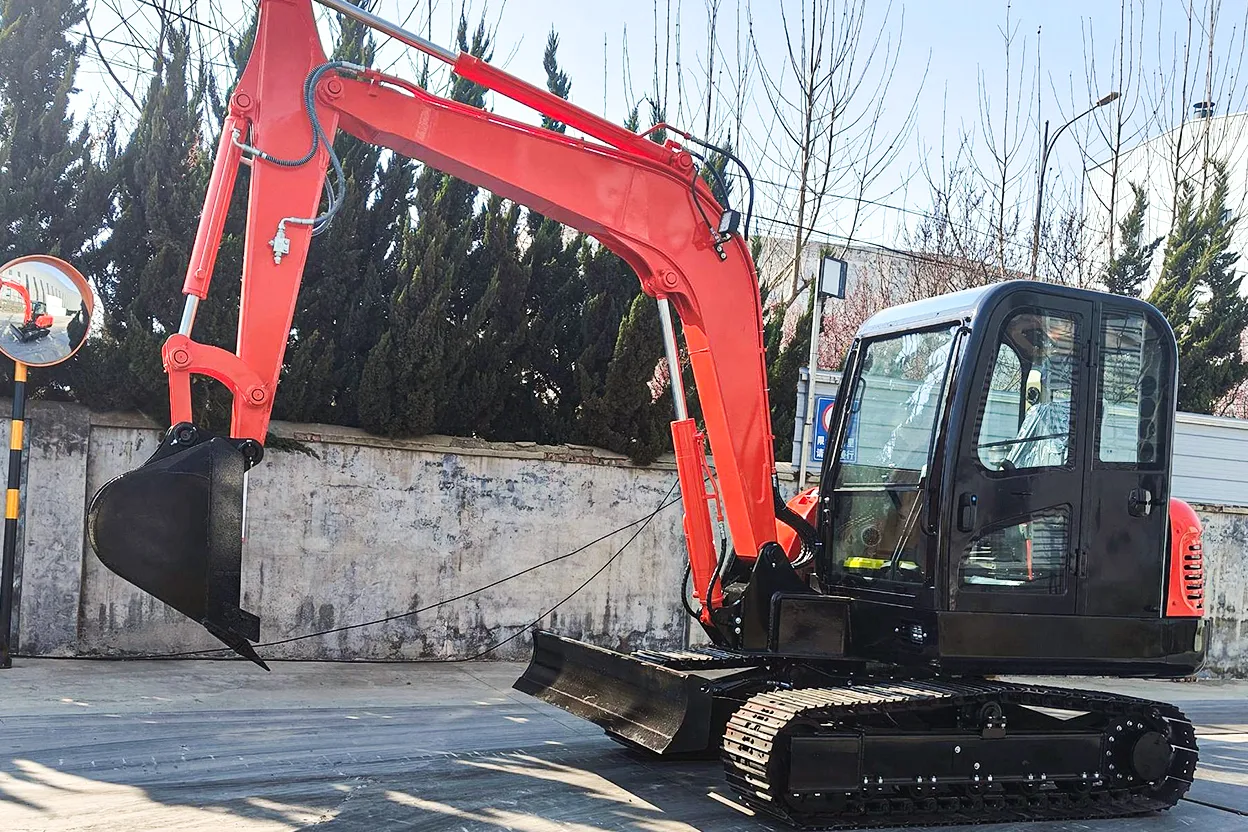

HT60 Excavator Overview
The HT60 Excavator is a compact 6-ton crawler excavator with a full cabin and dozer blade. This machine uses a well known Yanmar 4TNV94 diesel engine with about 37.4 kW power. And engine works with a load-sensing hydraulic system, high working pressure and large pump flow. The result is fast cycle time, strong digging force and smooth, simple control.
The undercarriage uses long track frames and wide shoes. This machine keeps good balance on soft ground and at a 35° climbing angle. The closed cabin keeps the operator safe from dust, noise and bad weather.
Typical applications of HT60 Excavator
- City road and sidewalk repair
- Underground pipe, cable and drainage trench
- Small house foundation and basement digging
- Landscaping, backfilling and slope shaping
- Small quarry and gravel yard loading
- Municipal projects and rental business fleets
Why Choose HT60 Excavator?
1. Strong digging performance
- HT60 Excavator offers high breakout force for its 6-ton class, so the bucket cuts hard soil and mixed rock.
- Long digging radius and deep digging depth allow one set-up to cover more work area.
- Dozer blade helps push and backfill fast, so the machine finishes jobs with fewer passes.
2. Stable crawler undercarriage
- Long track length on ground increases stability during digging and when the boom reaches far.
- Steel track frame is thick and well welded, so it can work on stones, bricks and rebar waste.
- Big dozer blade gives extra support in front, so the machine feels steady during heavy work.
3. Reliable engine and hydraulic system
- Yanmar 4TNV94 engine has good fuel economy and is easy to service in most markets.
- Load-sensing hydraulic system gives high pressure and large flow but saves energy when demand is low.
- Main valve and pump use famous brands, so parts are easy to source and uptime is high.
4. Safe and comfortable cabin
- Closed cabin keeps dust and rain outside and lowers noise for long working days.
- Adjustable high-back seat supports the driver’s back and neck.
- Pilot joysticks sit on armrests, so the operator can keep natural hand and arm posture.
- Clear gauge panel shows engine, fuel, temperature and warning lights at one glance.
5. Easy service and daily care
- Large side doors give direct access to engine, filters and oil ports.
- Grouped filters and clear labels help new operators finish daily checks in a short time.
- Simple electric layout and clear wiring marks help with fault finding and small repairs.
HT60 Excavator Specifications
| Operating Weight | 6000 kg |
| Bucket Capacity (SAE) | 0.3 m³ |
| Gradeability | 35° |
| Max. Digging Force | 5560 N |
| Travel Speed | 2.4–3.8 km/h |
| Slewing Speed | 8–10 r/min |
| Hydraulic Tank Capacity | 32 L |
| Max. Digging Height | 5760 mm |
| Max. Dumping Height | 4030 mm |
| Max. Digging Depth | 3820 mm |
| Max. Digging Radius | 6150 mm |
| Min. Swing Radius | 2250 mm |
| Dozer Blade Max. Lifting Height | 359 mm |
| Dozer Blade Max. Digging Depth | 268 mm |
| Min. Tail Swing Radius | 1170 mm |
| Engine Model | Yanmar 4TNV94 |
| Rated Power | 37.4 kW / 2200 rpm |
| Cooling Type | Water-cooled |
| Working Pressure | 28 MPa |
| Flow Rate | 109 L/min |
| Pump Type | Piston pump |
| Travel Motor | Dual-speed piston motor |
| System Type | Load-sensing system |
| Transport Length | 5850 mm |
| Transport Height | 2575 mm |
| Upper / Lower Frame Height | 1880 mm |
| Track Shoe Width | 400 mm |
| Total Track Length | 2540 mm |
| Track Gauge | 1880 mm |
| Min. Ground Clearance | 680 mm |
| Boom Length | 3000 mm |
| Arm Length | 1600 mm |
HT60 Excavator Detail Highlights
Gauge panel detail
- The HT60 Excavator uses a clear gauge panel beside the operator’s seat.
- The panel shows engine speed, water temperature, fuel level and warning lights.
- The operator can see machine status in real time and can stop problems before they grow.
Joystick armrest detail
- The cabin has two pilot joysticks mounted on long armrests.
- The armrests support the forearms, so the hands stay relaxed during fine control.
- The operator can move the boom and swing with small finger input and stable wrist posture.
Operator seat detail
- The high-back seat gives strong support for the back and shoulders.
- The seat includes a safety belt and thick cushion for long shifts.
- The seat slide and back angle can change, so different drivers can find a good position fast.
Pilot control joystick detail
- The pilot control joysticks connect to the hydraulic system through pilot lines, not direct heavy levers.
- This design cuts operator force and makes control light and accurate.
- New operators can learn basic motions in a short time, which is good for rental and fleet use.
Why Work With Torchuck for HT60 Excavator?
Direct factory support – Torchuck builds the HT60 Excavator in its own plant and controls welding, machining and assembly.
Stable quality system – Each machine passes full tests for hydraulic pressure, travel, swing and safety before shipment.
Fast container loading plan – The team designs loading plans for 20GP, 40GP and 40HQ containers to cut ocean freight cost.
Rich attachment options – Buckets, breakers, augers, rippers and quick couplers are ready for the HT60 series.
After-sales and parts – Standard wear parts and filters can ship out fast, and technical support is available by email and video.
OEM and branding service – Logo, color and decals can follow the buyer’s brand rule, which helps local marketing.
Real Jobsite Scenes of HT60 Mini Excavator
Urban construction scene
- One HT60 Excavator works on a city street to repair a broken water pipe.
- The machine digs close to traffic barriers and building walls, yet the tracks keep good stability.
- The cabin protects the operator from dust and falling debris from the old road surface.
Quarry and rough terrain scene
- Another HT60 Excavator works in a small quarry to load broken stone.
- The crawler undercarriage holds the machine steady on uneven rock and loose gravel.
- The strong boom and arm lift full buckets to trucks with safe, smooth motion.
See the Factory. Tell Us Your Job. Get a Quote Today.
Torchuck welcomes dealers, rental companies and contractors who need a strong 6-ton excavator.
You can tell us your work type, local climate and special needs.
We can match you with a suitable HT60 Excavator configuration and shipment plan.
Send us your company name, destination port, required quantity and expected delivery time.
Our team will reply with price, options and shipping plan as soon as possible.
