T500 Dump Truck – Compact Crawler Dumper for Tight Job Sites
Small tracked dump truck for concrete, soil and gravel, easy to move and easy to load.
T500 Dump Truck – Compact Crawler Dumper for Tight Job Sites

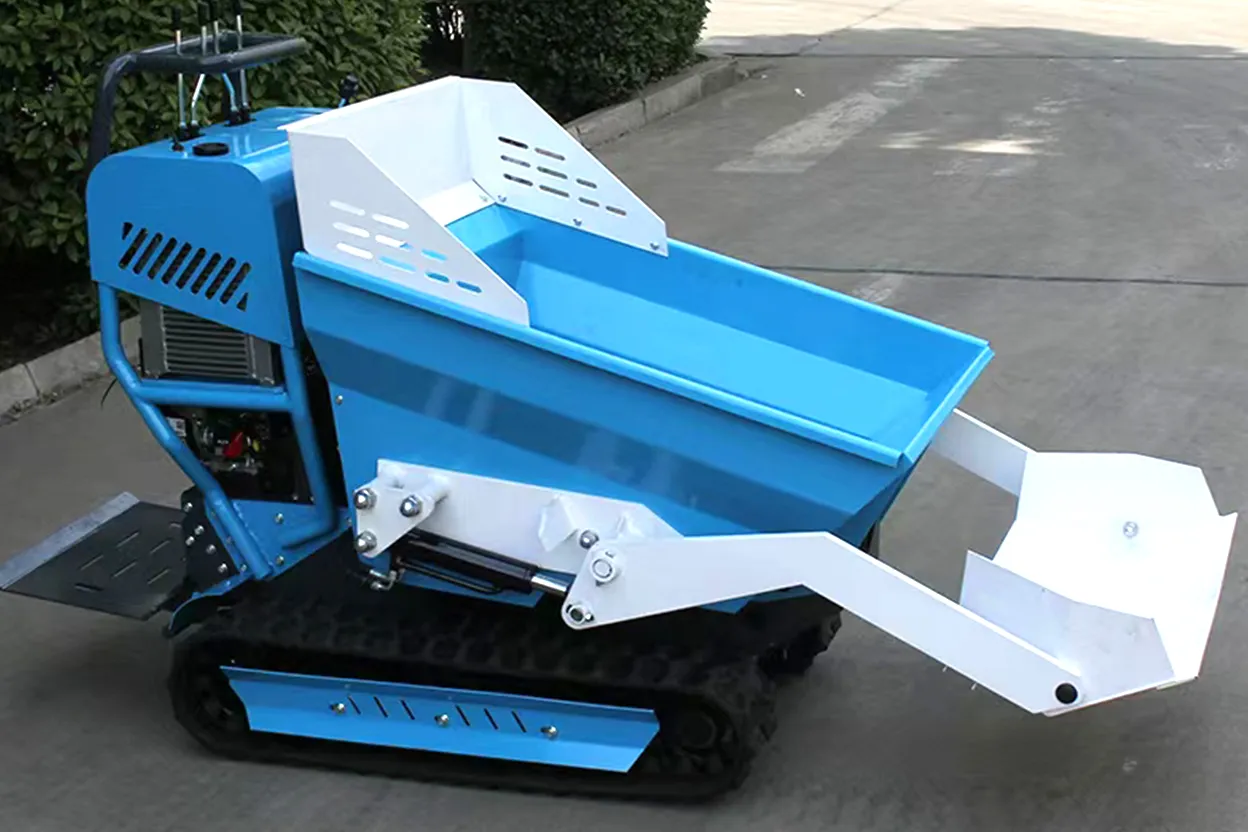

T500 Dump Truck Overview
The T500 Dump truck is a small crawler dumper for fast loading and short hauling work. This machine carries up to 500 kg of material in a 0.22 m³ cargo box and still stays very stable.
The tracked undercarriage spreads the load on soft or uneven ground, so the machine works on mud, gravel and fresh concrete. The high-flow dual pump, strong hydraulic cylinder and 20 MPa system pressure give smooth lifting and fast dumping.
The compact body moves through narrow paths, garden gates and inside small industrial buildings. The operator platform and simple control levers keep daily operation safe, clear and easy to learn.
Typical Applications of T500 Dump Truck
- Concrete transport and pouring on small building sites
- Backfilling and soil moving in gardens and backyards
- Material supply in warehouses, workshops and factories
- Loading and unloading work at docks and logistics yards
- Cleaning work in barns, livestock sheds and farm lanes
- Runway and pavement repair jobs in airports and city streets
Why Choose T500 Dump Truck?
- Strong power in a small size – The 200cc engine and efficient hydraulic system give enough power for 500 kg load and 20° climbing.
- Good performance on rough ground – Rubber tracks, low ground pressure and long track contact length keep the dump truck stable on loose soil and gravel.
- Fast dumping and short cycle time – The cargo box tilts up to a steep angle, so concrete and soil slide out quickly and cleanly.
- Easy control and low learning time – Simple levers and pedals help new operators start work after a short training.
- Flexible body for tight places – The narrow 844 mm width lets the T500 Dump truck pass through doors, gates and narrow paths.
- Low daily cost – The machine uses little fuel, and the strong structure reduces unplanned downtime.
T500 Dump Truck Specifications
This table shows the key specifications of the T500 Dump truck, including operating weight, cargo box capacity, climbing ability, travel speed, hydraulic data, engine data and overall dimensions. Use these values to check if the machine fits your site space, slope and hauling distance.
| Operating Weight | 642 kg |
| Cargo Box Capacity | 0.145 m³ |
| Climbing Ability | 20° |
| Maximum Load | 200 kg |
| Travel Speed | 0.8–1.7 km/h |
| Minimum Turning Radius | 1420 mm |
| Track Center Distance | 825 mm |
| Minimum Ground Clearance | 85 mm |
| Track Contact Length | 825 mm |
| Cargo Box Tilting Angle | 90° |
| Mixing Drum Diameter | 600 mm |
| Feed Inlet Diameter | 423 mm |
| Mixing Drum Depth | 612 mm |
| Bucket Lifting Height | 1622 mm |
| Bucket Lifting Length | 1767 mm |
| Unloading Height from Ground | 232 mm |
| Travel Motor | 200 ml/r |
| Slewing Motor | 200 ml/r |
| Hydraulic Dual Pump | 2.7 + 2.7 ml/r |
| Overall Dimensions (L×W×H) | 2155 × 800 × 1228 mm |
| Overall Height | 1228 mm |
| Overall Width | 800 mm |
| Overall Length | 2155 mm |
| Brand | Koop / Rato / B&S |
| Model | 178F / R210 / RX6.5 |
| Rated Power | 4.2 / 4.8 / 4.78 kW |
| Cylinder | 1 |
| Intake Method | Naturally aspirated |
| Emission Standard | EPA / ERUO5 |
| Fuel Tank Capacity | 3.1 L |
T500 Dump Truck Detail Highlights

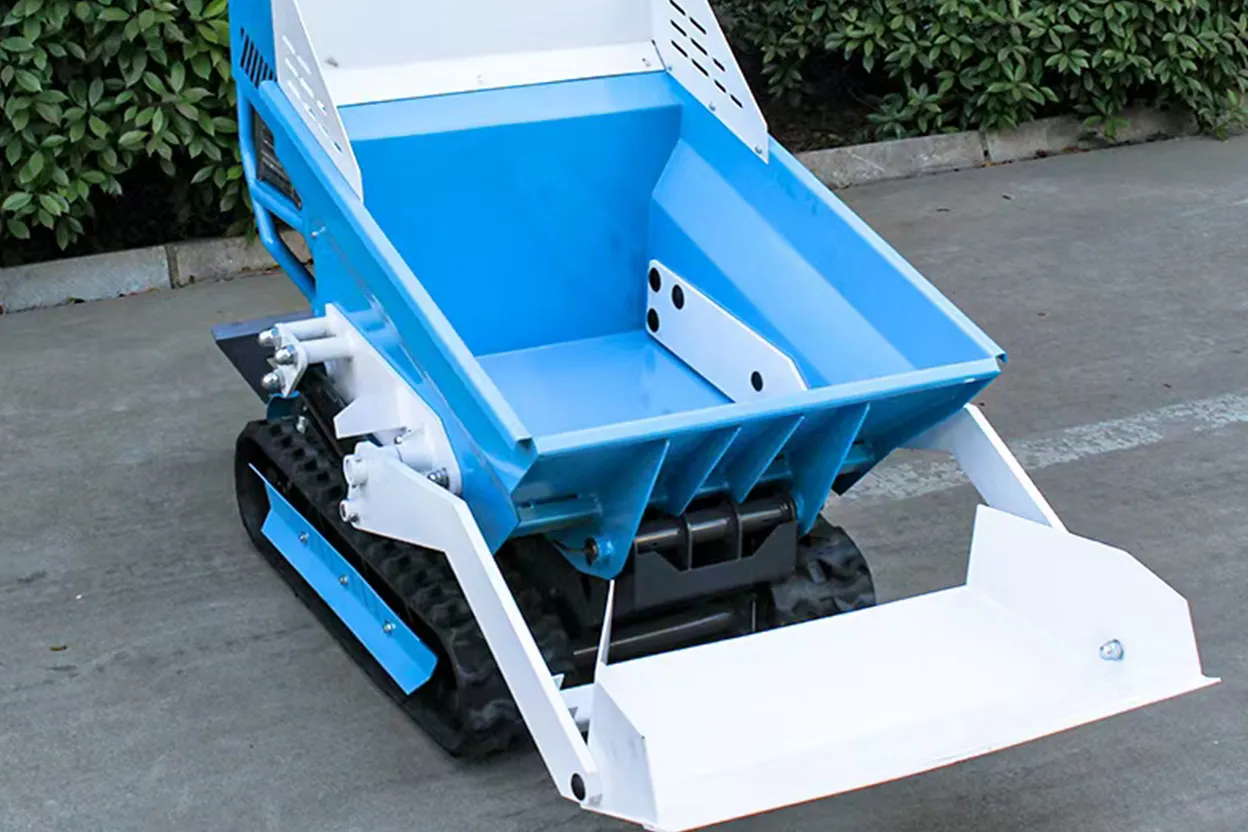

Bucket interior detail
- The deep cargo box has smooth steel sides and a flat bottom.
- Concrete, sand and gravel flow out in a clean way, so less material sticks to the box after each cycle.
Front bucket tipping mechanism
- The front tipping frame uses strong pins and well protected cylinders.
- The box reaches a high dumping angle, so the operator can place concrete exactly where it is needed.
Operator platform and controls
- The standing platform gives the operator a clear view of the path and the box.
- Simple hand levers and foot controls make steering, driving and dumping very direct and safe.
Track and undercarriage detail
- The rubber tracks and low undercarriage protect finished surfaces and reduce ground damage.
- The long contact length and low center of gravity improve traction and stability on slopes.
Why Work With Torchuck for T500 Dump Truck?
- Direct factory support – Torchuck designs and builds the T500 Dump truck in its own factory, so the team can adjust details and give fast technical answers.
- Stable quality control – Each machine passes full function tests, load tests and leak tests before shipment, so the dump truck works well after it arrives on site.
- Flexible options for dealers – The team can offer different engines, paint colours and small custom changes to match local market needs.
- Strong packing and shipping experience – Torchuck knows how to load small dump trucks into containers safely and efficiently, which helps reduce freight cost.
- Reliable after-sales service – Spare parts, manuals and online support are ready for dealers and end users, so small problems do not stop the job for long.
- Long-term cooperation view – Torchuck prefers to work with stable dealers and rental fleets, and supports them with training, marketing materials and stock advice.
Real Jobsite Scenes of T500 Dump Truck
Concrete pouring scene
- The T500 Dump truck moves concrete from the mixer to the pour point in narrow yards and between walls.
- The operator dumps directly into slabs or trenches, which reduces manual shovel work and speeds up the job.
Concrete transport scene
- The machine carries concrete, wet soil or gravel along steep and rough paths where a wheelbarrow is slow and unsafe.
- The tracked undercarriage keeps the dump truck stable, so the load stays level and the work stays safe.
See the Factory. Tell Us Your Job. Get a Quote Today.
Torchuck works with dealers, rental companies and contractors who need a compact crawler dump truck.
The T500 Dump truck helps your team move concrete and bulk material in tight spaces with less labour and less time.
Send us your project details and site photos.
Our team will reply with price, options and shipping plans as soon as possible.
