Diesel Forklift Designed for Maximum Productivity

Reliable | Durable | Cost-Effective – Powering Your Growth

CPC-G 시리즈 디젤 지게차

Torchuck CPC-G Series Diesel Forklift provides robust power, efficient operation, and exceptional durability. Engineered with high-performance QUANCAHI diesel engines, solid structure, and advanced hydraulic controls, it’s ideal for heavy-duty warehouse handling, logistics yards, manufacturing environments, and port applications.

✅ High Lifting Capacity

Powerful QUANCAHI diesel engines with 4000kg–5000kg lift capacity

Lifting height up to 3000mm, ideal for versatile handling tasks

✅ Reliable & Efficient

Advanced hydraulic system ensures smooth, consistent lifting

Durable design supports intensive daily operations

✅ Exceptional Stability & Maneuverability

Compact turning radius (2730-2930mm), suitable for narrow spaces

Excellent gradeability (up to 21%) and strong traction (25-29 KN)

✅ Enhanced Operator Comfort

Ergonomic design with premium safety seat and intuitive controls

Clear visibility, spacious cabin layout, reduces operator fatigue

Basic Technical Parameters

모델	CPC-G40	CPCD-G40	CPC-G45	CPCD-G45	CPC-G50X	CPCD-G50X
Power Type	Diesel
Lift Capacity (kg)	4000	4000	4500	4500	5000	5000
Load Center Distance (mm)	500
Battery (V/Ah)	29556	29556	12/120	12/120	12/120	12/120

성능 매개변수

Item	CPC-G40	CPCD-G40	CPC-G45	CPCD-G45	CPC-G50X	CPCD-G50X
Max. Lift Height (mm)	3000
Free Lift Height (mm)	160
Mast Tilt Angle (°)	45820
Lift Speed (mm/s)	420/440	420/440	430/470	450/510	420/460	440/500
Lowering Speed (mm/s)	330/310	330/310	420/350	420/350	430/350	430/350
Travel Speed (km/h)	19/19.5	19/19.5	18.5/19	22/23	18.5/19	22/23
Min. Turning Radius (mm)	2730	2730	2930	2930	2930	2930
Gradeability (%)	15/20	15/20	20/21	20/21	20/21	20/21
Traction Force (kN)	25	25	29	29	29	29
Overweight (kg)	5200	5200	6450	6600	6700	6850

Dimensions

Item	CPC-G40	CPCD-G40	CPC-G45	CPCD-G45	CPC-G50X	CPCD-G50X
Length (no fork, mm)	2960	2960	3220	3220	3220	3220
Width (mm)	1400	1400	1500	1500	1500	1500
Height of Mast (mm)	2130	2130	2275	2275	2275	2275
Overall Height (guard)	2160	2160	2280	2280	2280	2280
Backrest Height (mm)	1350	1350	1280	1280	1280	1280
Max. Lift Height (mm)	4230
Min. Ground Clearance (mm)	140	140	169	169	169	169
Wheel Base (mm)	1900	1900	2100	2100	2100	2100
Front Tread (mm)	1150	1150	1195	1195	1195	1195
Rear Tread (mm)	1070	1070	1195	1195	1195	1195
Front Overhang (mm)	500	500	560	560	560	560
Rear Overhang (mm)	580	580	560	560	560	560

Other Parameters

Item	All Models
Front Tires	250-15-16PR / 300-15-18PR
Rear Tires	7.00-12-12PR
Fork Size (mm)	1070×150×50

Engines

엔진 모델	QUANCAHIV32-50C45	QUANCAHI V35-88C41
Rated Power (kW/rpm)	36.8/2500	65/2200
Rated Torque (N.m/rpm)	200/1600-1800	355/1400-1600
No. of Cylinders	4	4
변위(L)	3.17	3.47

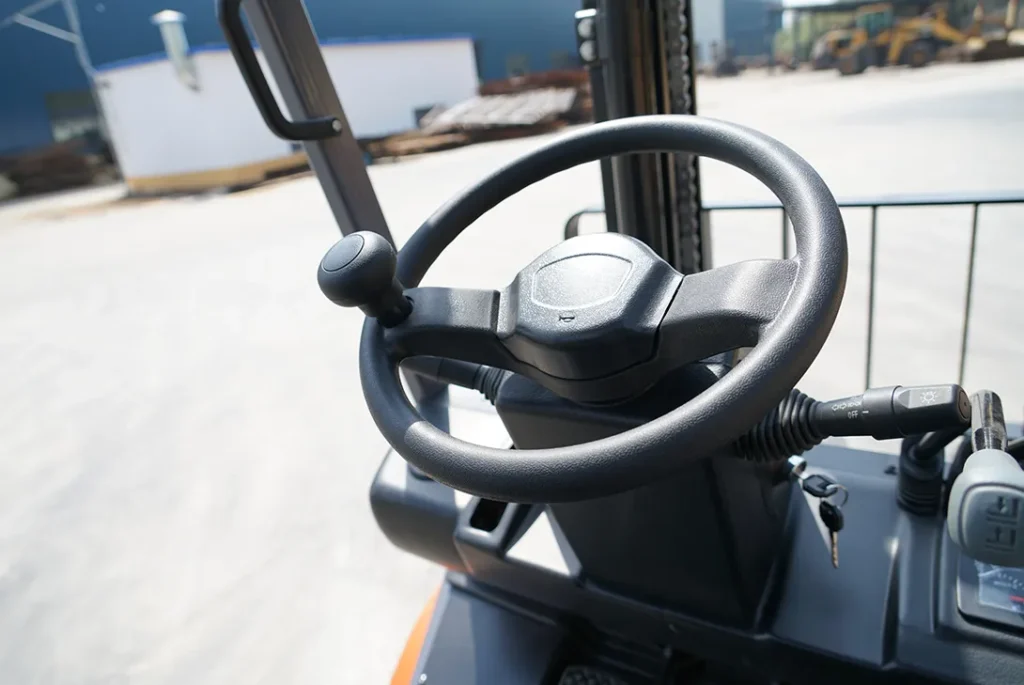

Ergonomic Operator Cabin

Premium ergonomically designed seat with adjustable settings
Fingertip controls for precision handling and comfort
Spacious operator cabin designed for reduced fatigue

Powerful Diesel Engine

QUANCAHI engines offer reliable performance and fuel efficiency
High rated torque (up to 355 N.m) for heavy-duty applications
Four-cylinder engines designed for robust workload handling

Advanced Hydraulic System

Imported hydraulic components ensure smooth lifting and lowering
Responsive mast tilt mechanism designed for safe and accurate load positioning.
Efficient, reliable handling even at maximum loads

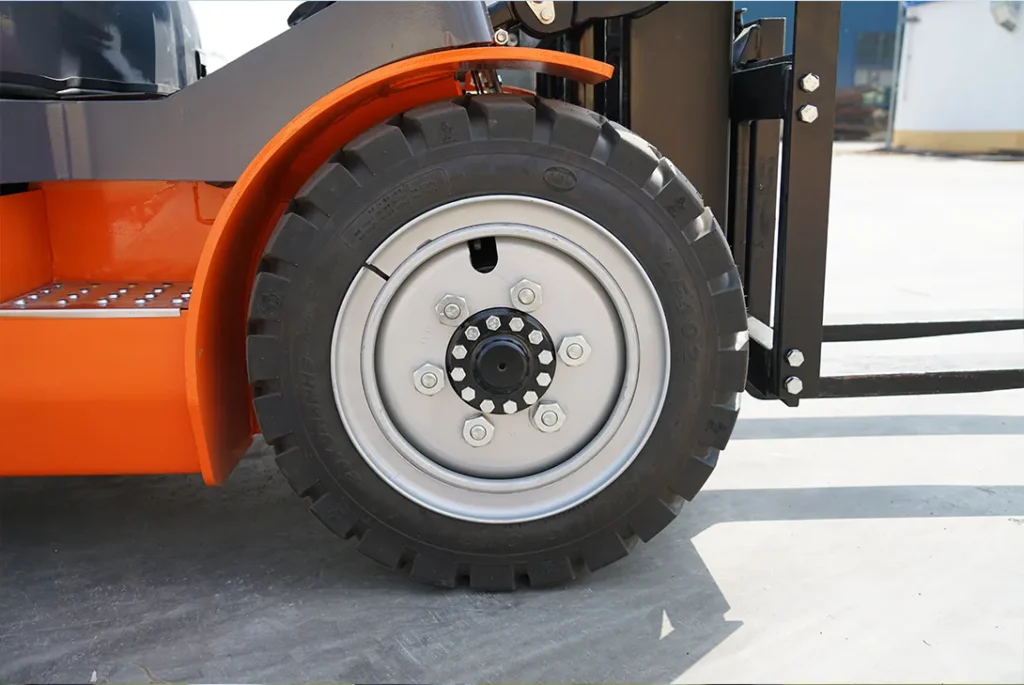

Durable Solid Tires

Front tires: 250-15-16PR / 300-15-18PR, Rear tires: 7.00-12-12PR
Designed for durability across various surfaces and intensive use
Provides stable handling and reduced downtime

대량 구매자가 토척을 선택하는 이유

안정적인 공급:
효율적인 납기 일정으로 프로젝트가 중단 없이 진행되도록 보장합니다.

경쟁력 있는 가격:
대량 구매 및 대행사 할인은 최적의 비용 효율성을 제공합니다.

전담 지원:
유통업체 및 대량 구매자를 위한 종합적인 지원 네트워크.

사용 후기

“The CPC-G forklift series performs superbly in our busy logistics warehouse. Its reliability and lifting performance consistently exceed our expectations.”

- Alexandre Dupont, Logistics Supervisor, Paris, France

“In our port operations, the CPC-G forklift has shown impressive power and durability. It handles heavy loads smoothly even under challenging conditions.”

- Hassan Ibrahim, Port Operations Manager, Dubai, UAE
