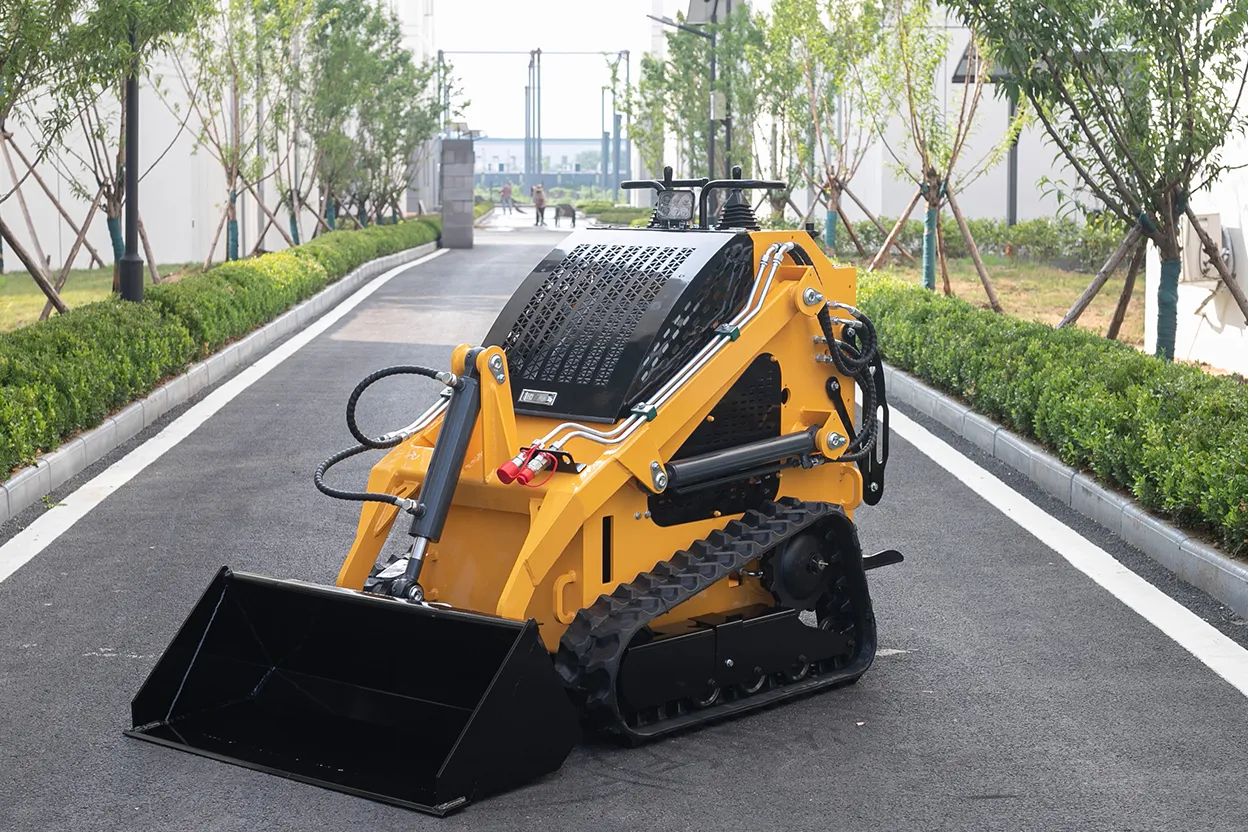

Torchuck T360 Skid Steer Loader
Torchuck T360 skid steer loader is a compact tracked loader for tight places and busy jobs.
It moves fast, turns quickly, and protects the ground. Tracks give steady grip on soil, gravel, and pavement.
The hydraulic system is smooth and quick. An oil cooler keeps the system stable during long work.
You can choose gasoline, diesel, or 72V lithium-electric power.
The cab is simple and safe. Joystick controls are easy to learn. Daily checks take only minutes.
If you need one machine for many tasks—loading, cleaning, levelling, and moving materials—the T360 skid steer loader is a smart choice.
Application:
City street and facility maintenance
Landscaping, park and estate care

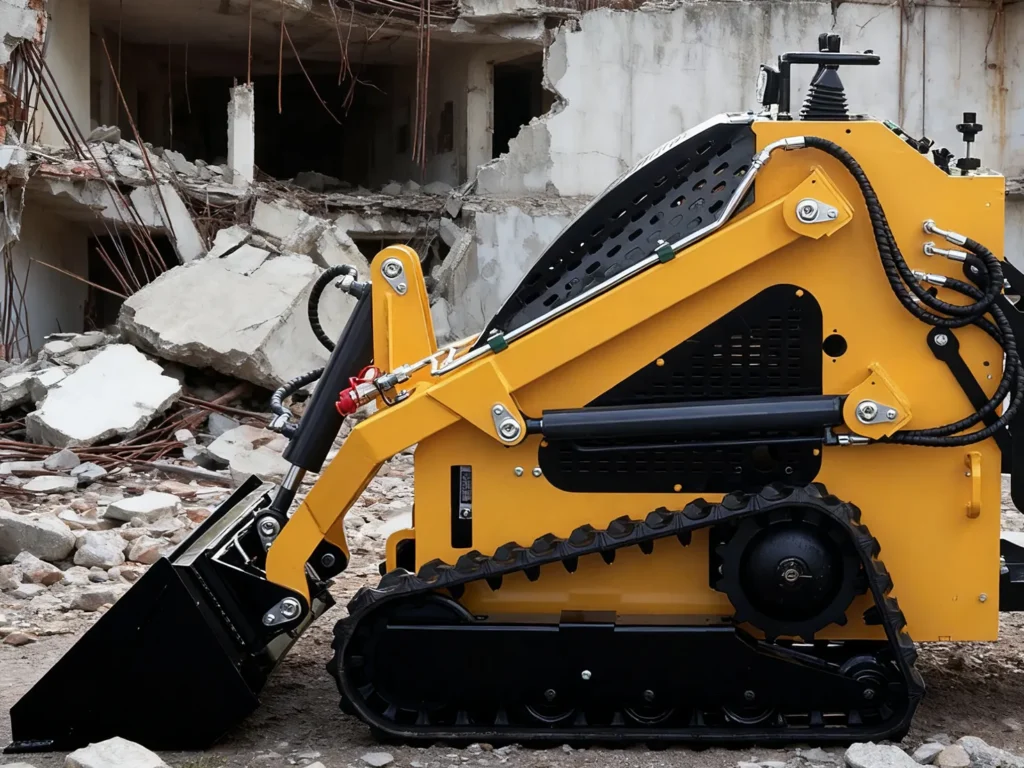

Small construction and site clean-up
Farm and barn work, light material handling
Backfilling, levelling, and truck loading
Warehouse and dock yards where space is tight
Why Choose Torchuck T360 Skid Steer Loader?
Compact but capable
- Works where bigger loaders cannot.
Tracked stability
- Low ground pressure; less damage to lawns and pavement.
Fast hydraulics
- Short cycle time; higher output per day.
Cool and reliable
- Oil cooler protects pumps, motors, and seals.
Power choices
- Gasoline, diesel, or quiet lithium-electric.
Easy service
- Wide-opening covers; filters and belts within reach.
| Model | T360 |
| Operating Weight | 900 kg |
| Bucket Capacity | 0.12 m³ |
| Climbing Ability | 25° |
| Maximum Breakout Force | 3.5 KN |
| Rated Load | 200 kg |
| Maximum Load | 300 kg |
| Travel Speed | 0–6 km/h |
| Three-item Sum of Work | 9 s |
| Working System Pressure | 17–21 bar |
| Bucket Width | 1050 mm |
| Max Loading Height | 1720 mm |
| Max Dumping Height | 1510 mm |
| Max Operating Height | 2400 mm |
| Height to Bucket Pin | 1870 mm |
| Max Height Bucket Dump Angle | 63° |
| Min Height | 1300 mm |
| Tail Length | 500 mm |
| Ground Clearance | 130 mm |
| Dumping Distance | 250 mm |
| Track Contact Length | 900 mm |
| Overall Dimensions | 2070×1050×1300 mm |
| Length Including Bucket | 2070 mm |
| Length Excluding Bucket | 1640 mm |
| Track Model | 180×72×35 |

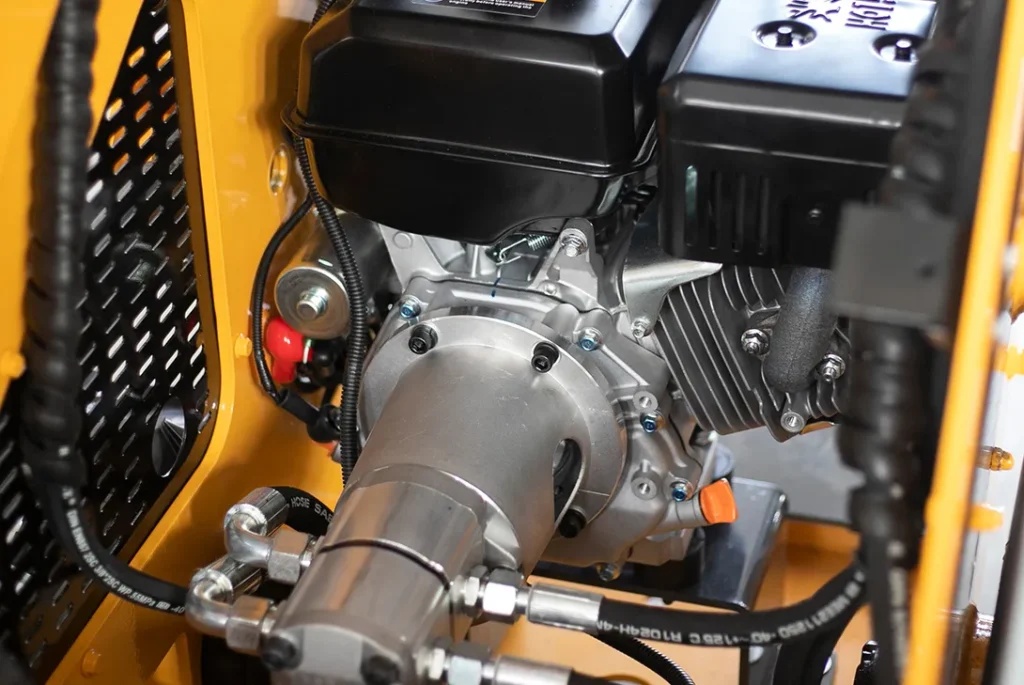

| Brand | Lithium Electricity / KOOP / Rato / B&S |
| Model | Lithium Iron Phosphate / 192F / R420 / XR13.5 |
| Rated Power | 6 kW, 72V, 125Ah / 7.5 / 8.6 / 9.9 kW |
| Cylinder | 1 |
| Intake Method | Natural Inhalation |
| Emission Standard | EPA / Euro V |
| Fuel Tank Capacity | 5 L |

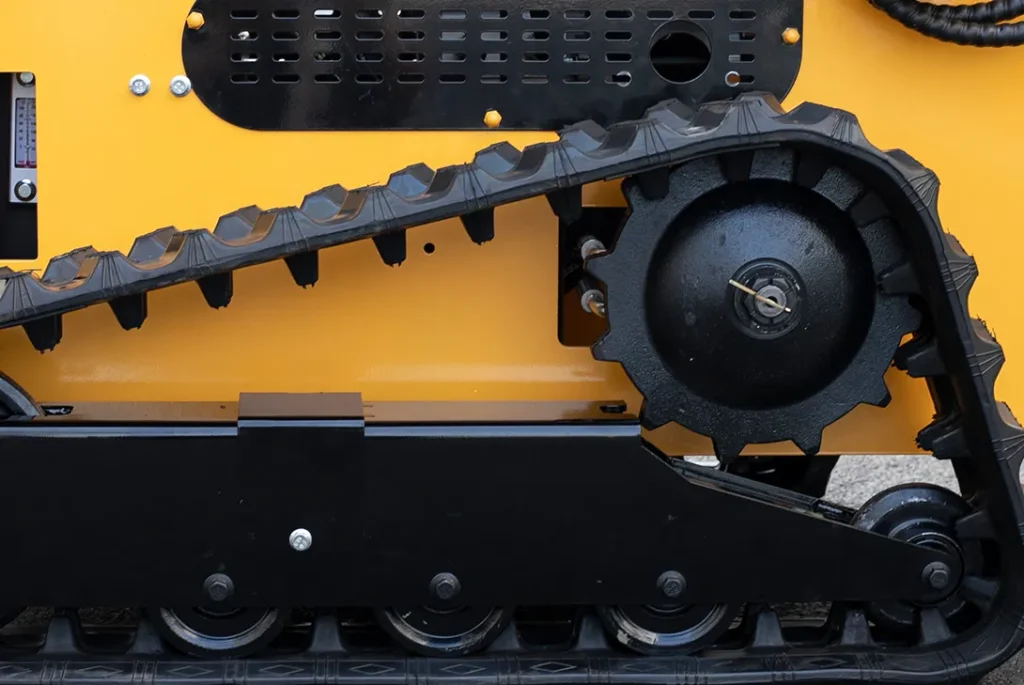

High-Stability Triangular Rubber Tracks
- The T360 skid steer loader uses a triangular track layout.
- It spreads the weight and keeps the machine steady on slopes.
- Tracks bite into loose ground but roll smoothly on hard roads.
- Low ground pressure means fewer ruts and less repair work after the job.

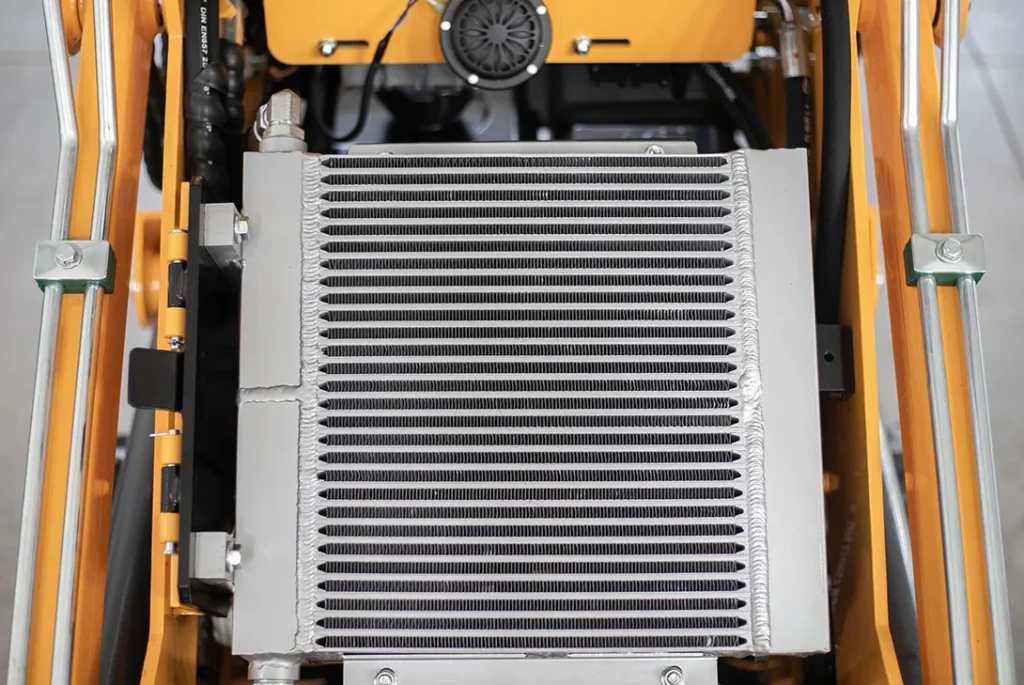

High-Efficiency Hydraulic Oil Cooler
- The cooler has a large fin area and strong airflow.
- Oil temperature stays in the safe zone during summer use.
- This protects valves, seals, and hoses.
- You get the same smooth control at the end of the day as at the start.
High-Quality Travel Motor
- The travel motor gives strong torque at low speed and smooth starts.
- It holds speed when the bucket is full or when climbing a ramp.
- Sealed bearings and quality hoses reduce leaks and dust entry.
- Result: steady travel, less downtime, longer life.

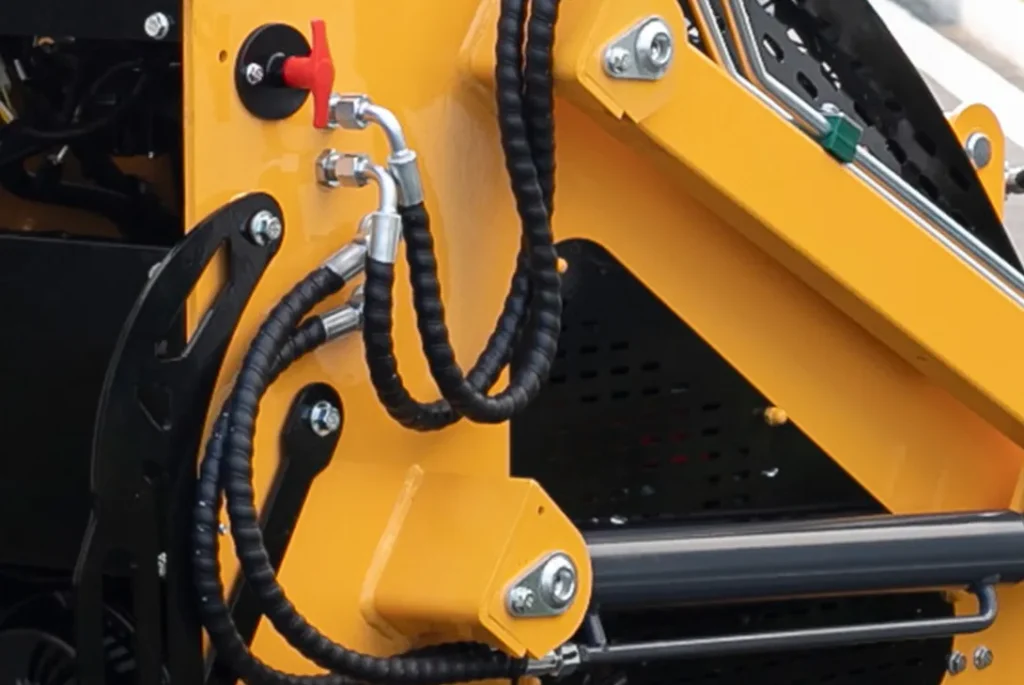

Clean Hose Routing & Reinforced Boom
- Hoses run close to the boom with guards at rub points.
- This reduces wear from branches, bricks, and edges.
- Reinforced boom brackets handle shock loads from scooping and dumping.
- Pins and bushings are easy to grease and to replace when needed.
Why Choose Torchuck?
Own Factory
Welding, painting, assembly and testing in-house for stable quality.
Fast Lead Time
Regular stock of key models; quick shipment worldwide.
OEM Service
Color, logo, and attachment packages to your market needs.
QC & Compliance
CE/EPA process, 100% test before shipping.
Fair Pricing
Direct factory price with dealer and bulk discounts.
After-Sales
Parts in stock, manuals and video support, engineer online help.
Testimonials
A municipal team needed a small loader for night work on narrow streets.
They chose the T360 skid steer loader with the lithium-electric option.
Noise dropped, neighbours slept well, and the crew finished more bins and curb clean-ups each shift.
A farm used the T360 to move crates and level soft paths between vines.
Triangular tracks protected the soil and kept traction on slopes.
The oil cooler stopped heat fade during long summer days, so work did not slow down.
See our factory. Talk with our team. Get your plan today.
Torchuck builds and ships compact loaders every week.
Send us your job details and we will match a T360 skid steer loader package with price, lead time, and attachments.
