TCB 10-20 Backhoe Loader
Compact 4WD machine for digging, loading, and site support.
TCB 10-20 Backhoe Loader
TCB 10-20 Backhoe Loader Overview
One machine can handle two kinds of work. The front loader moves soil, gravel, and debris. The rear backhoe digs trenches and small foundations.
The machine keeps a compact footprint, so it fits tight jobsites. The 4WD layout helps the machine move on mixed ground. The operator can switch between loader work and backhoe work with simple steps.
Typical Applications of TCB 10-20 Backhoe Loader
- Trenching for water lines, cable, and drainage
- Foundation prep for small buildings and site pads
- Loading sand, soil, stone, and construction waste
- Farm and rural work, road repair, and yard maintenance
- Quarry and aggregate yard support work
- Light demolition cleanup and backfilling
Why Choose TCB 10-20 Backhoe Loader?
- Two jobs, one machine – The loader handles material fast, and the backhoe handles digging in tight areas.
- Stable steering and travel – The chassis stays controlled when the ground changes, and the machine keeps steady movement on site.
- Easy operator control – The operator uses a clear layout, and the machine responds in a direct way.
- Jobsite-ready build – The key structures take daily work loads, and the machine suits routine site use.
- Lower transport pressure – Many teams use one unit to cover more tasks, so they can reduce extra small equipment on site.
TCB 10-20 Backhoe Loader Specifications
Key Specs
| 모델 | TCB 10-20 Backhoe Loader |
| 작동 무게 | 3400 kg |
| 전체 치수(L×W×H) | 5500 × 1750 × 2600 mm |
| 휠베이스 | 2070 mm |
| Wheel Tread | 1475 mm |
| 최소 지상고 | 250mm |
성능
| System Pressure | 16 MPa |
| Maximum Travel Speed | 25 km/h |
| 채점 가능성 | 25° |
| 최소 회전 반경 | 3500 mm |
| 드라이브 유형 | Four-wheel drive (4WD) |
| 전송 유형 | Hydrodynamic transmission |
| Braking Distance | 330 mm |
Working Parameters
| Backhoe (Excavator) | |
| 최대. 파기 깊이 | 2000 mm |
| Digging Dumping Height | 1800 mm |
| 최대. 파기 반경 | 2700mm |
| Backhoe Bucket Width | 400mm |
| Backhoe Bucket Capacity | 0.1 m³ |
| 최대. 파기 높이 | 3300 mm |
| Max. 파고드는 힘 | 25 kN |
| Backhoe Swing Angle | 180° |
| 로더 | |
| 최대. 덤핑 높이 | 2800mm |
| Max. Dumping Reach | 800mm |
| Loader Bucket Width | 1800 mm |
| Loader Bucket Capacity | 0.5 m³ |
| Max. Lifting Height | 3300 mm |
| Max. Breakout Force | 36 kN |
| Loader Cycle Time (Total) | 12 s |
Powertrain & Chassis
| 엔진 | |
| 모델 | Yunnei YN25GB |
| Type | Direct injection, four-stroke |
| 정격 전력 | 37 kW |
| Rated Speed | 2400 r/min |
| Cylinders / Bore | 4 / 90 mm |
| 전송 시스템 | |
| Gearbox Type | Fixed-shaft power shift |
| Gears | 2 forward / 2 reverse |
| Torque Converter Model | ZL28F |
| Steering System | |
| Steering Type | Articulated full hydraulic steering |
| Steering Angle | 33° |
| Axle & Tires | |
| Axle Model | Isuzu axle |
| Tire Specification | 20.5-16 |
| Front Tire Pressure | 250 kPa |
| Rear Tire Pressure | 250 kPa |
| Service Brake | Hydraulic drum brake |
| Parking Brake | Manual |
| 용량 | |
| 연료 탱크 용량 | 30 L |
| 유압 오일 탱크 용량 | 30 L |
TCB 10-20 Backhoe Loader Detail Highlights
Backhoe Arm & Hydraulic Detail
- The backhoe arm keeps a strong structure, so it stays steady during trench work.
- The hydraulic lines follow a protected routing, so daily work is easier to manage.
- The joints and pins support repeated cycles, and they suit routine digging loads.
Heavy-Duty Axle & Tire Detail
- The axle and tire setup supports site travel, and it helps keep traction on mixed ground.
- The tire pattern grips loose soil and gravel, so the machine can keep forward motion.
- The layout supports loader work, and it helps reduce shake when carrying material.
로더 버킷 세부 정보
- The loader bucket moves loose material in fewer passes, so loading work goes faster.
- The bucket edge supports daily scraping and cleanup, and it suits common site materials.
- The linkage keeps lift and dump actions smooth, so the operator can place loads with control.
Operator Cabin & Loader Frame Detail
- The operator area keeps controls within easy reach, so long shifts feel more direct.
- The cabin view supports loader positioning, and it helps during bucket dump and backfill work.
- The loader frame keeps a solid stance, so the machine stays stable in repeated cycles.
- Factory-side support. Torchuck follows the model build and can support your order setup.
- Parts and service planning. We can prepare common wear parts, and we can support after-sales needs.
- OEM/ODM options. We can adjust decals, color, and key options to match your market needs.
- Quality control steps. The team checks key processes, and they keep output consistent for export orders.
- Shipping experience. We support packing and container loading plans, so your delivery process stays clear.
Real Jobsite Scenes

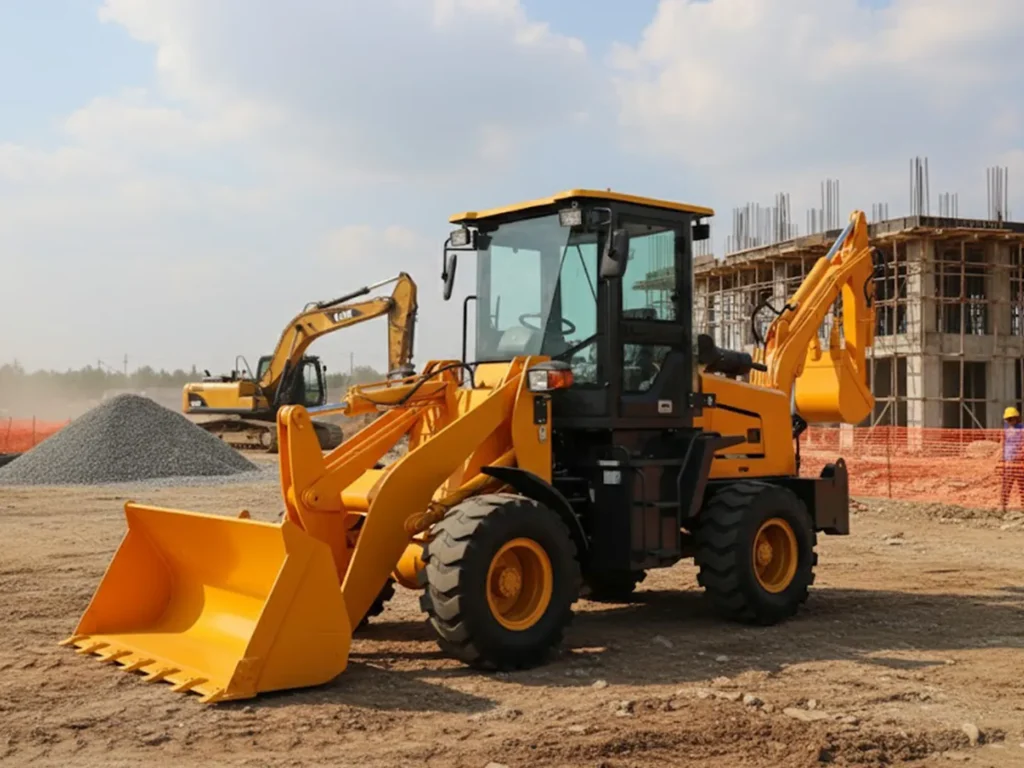

TCB 10-20 Backhoe Loader Job Site Scene 1
- The loader supports daily material handling, and it helps keep the site clean and moving.
- The backhoe function helps with trench and pit work, so one unit can cover more tasks.

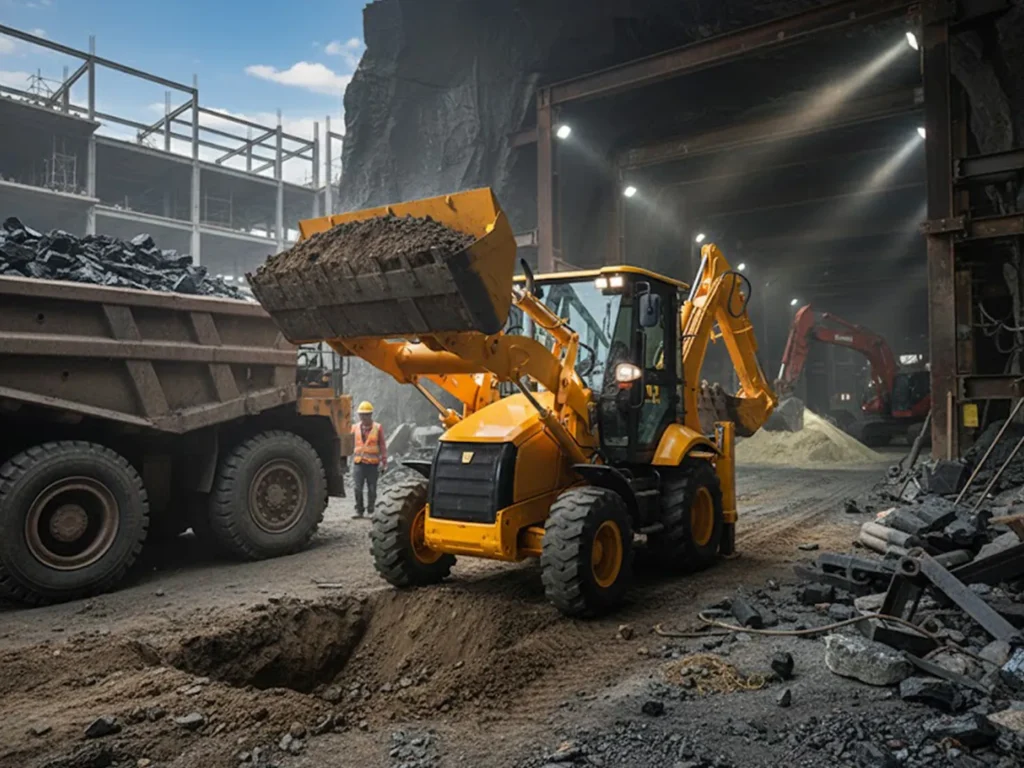

TCB 10-20 Backhoe Loader Job Site Scene 2
- The machine works as a site support unit, and it keeps loading and moving tasks on schedule.
- Many teams use this setup for mixed work, so the machine fits changing job needs.
공장 보기. 귀하의 업무를 알려주세요. 오늘 견적 받기.
Torchuck supports backhoe loader supply for jobsite work. You can share your target tasks, local ground conditions, and order needs. We will reply with a clear quote and support options.
